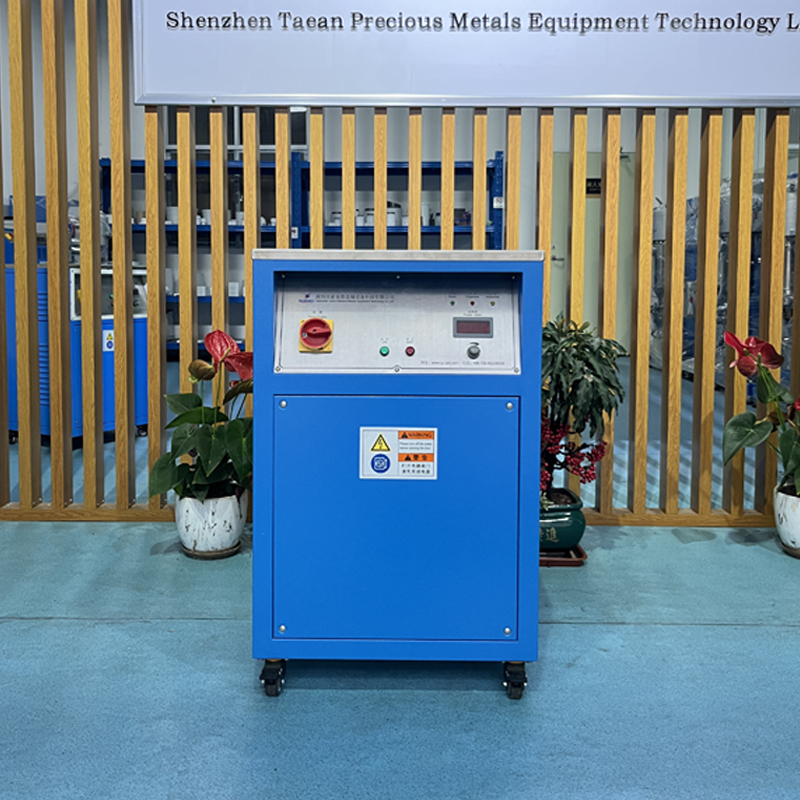

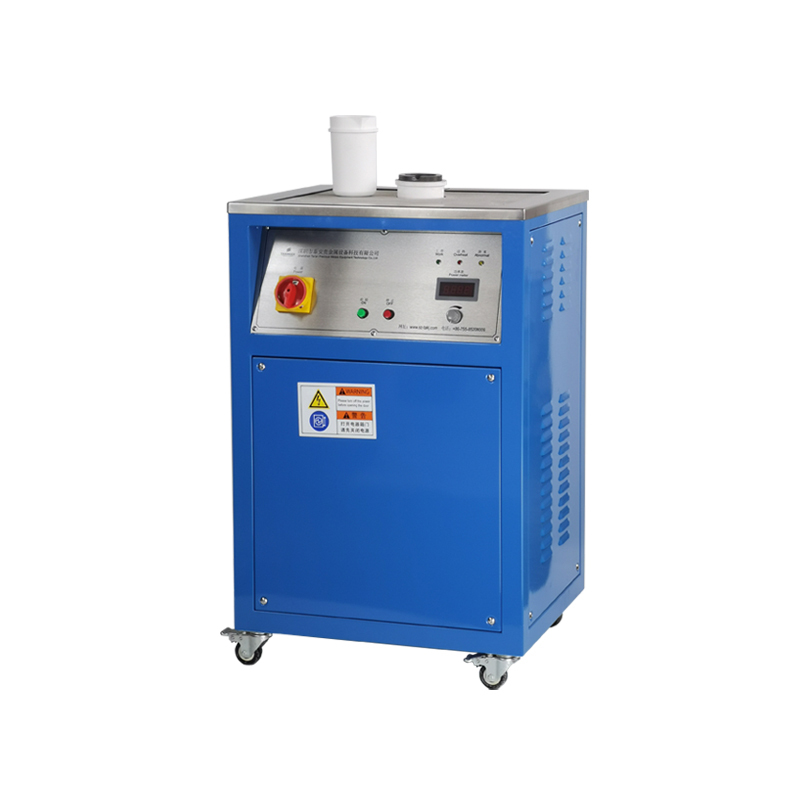

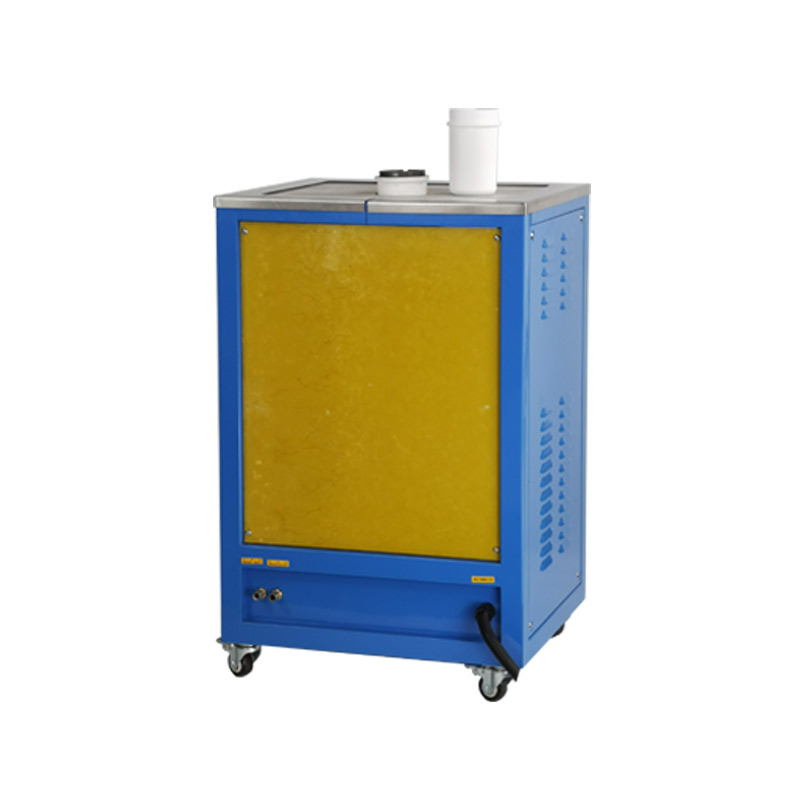

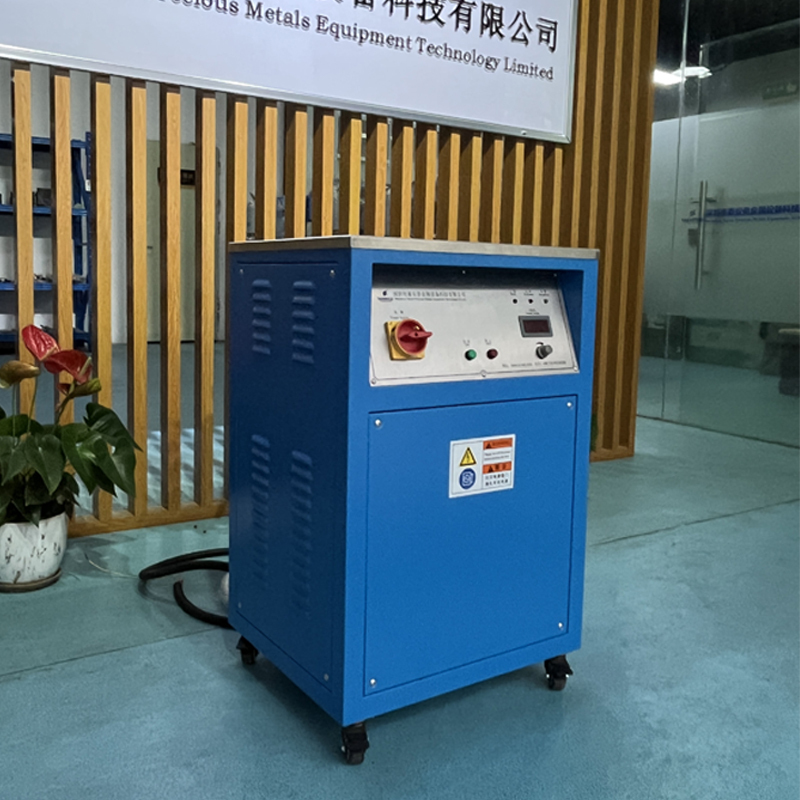

1KG-15KG Induction Gold sliver copper Platinum Melting Furnace

No.TAKJ-MGQ
Taean manual pouring and melting machine can reach a maximum temperature of 2100°C. Rated power is 15kw. This provides an ultra-high heating effect, capable of melting 15kg of gold (and other metals of similar weight) in 2-5 minutes.

Taean vertical manual smelting and pouring machine heats your raw metal very quickly. It speeds up your operations and ultimately improves your profit margins. This machine is the best ideal for jewelry foundries and old jewelry refineries.
Power max.
15KW
Electrical connection
220V single phase 380V three phase 50/60Hz
Temperature Max.
2100℃
Capacity Optional
1-15kg Au
Melting time
2-5 minutes
Melting metal
Platinum, gold, silver, copper, alloy
Cooling System
Water cooling
  • 1KG-15KG Induction Gold sliver copper Platinum Melting Furnace
  • 1KG-15KG Induction Gold sliver copper Platinum Melting Furnace
  • 1KG-15KG Induction Gold sliver copper Platinum Melting Furnace
  • 1KG-15KG Induction Gold sliver copper Platinum Melting Furnace
  • 1KG-15KG Induction Gold sliver copper Platinum Melting Furnace
  • Parameters
  • Features & Benefits
  • Application
  • Crucible & Mold

Model No.

TAKJ-MGQ1

TAKJ-MGQ2

TAKJ-MGQ3

TAKJ-MGQ4

TAKJ-MGQ5

TAKJ-MGQ6

TAKJ-MGQ8

TAKJ-MGQ10

Voltage

220V single phase

220V/380V; 50/60Hz  3 phases

380V; 50/60Hz  3 phases

Power

5KW

5KW/8KW

8KW

15KW

Capacity (Gold)

1kg

2kg

3kg

4kg

5kg

6kg

8kg

10kg

Max Temp

1600°C/2100°C

Melting Time

1-2  min.

1-2  min.

2-3  min.

2-3  min.

3-5  min.

2-3  min.

3-5  min.

5-8  min.

Temp Accuracy

±1°C

PID temp control

Optional

Application

Platinum, Palladium, Stainless steel, Gold, K gold, silver, copper and other alloys

Cooling type

Water chiller(sold separately) or Running water (water pump sold separately)

Dimensions

560x480x880mm

Net Weight

 approx.60kg

approx. 62kg

approx. 65kg

approx. 66kg

approx. 68kg

approx. 70kg

approx. 75kg

approx. 80kg

Shipping weight

approx. 86kg

approx. 87kg

approx. 89kg

approx. 89kg

approx. 92kg

approx. 95kg

approx. 105kg

approx. 115

  1. The gold smelting equipment is based on advanced IGBT induction technology, which is an efficient gold smelting solution. Over time, due to its superior role, it has been trusted by operators and business owners.
  2. The design takes convenience and efficiency as the core goal.
  3. Its design ensures that melted metal can be easily poured into the mold. This prevents spills or splatters, thereby reducing the risk of operator injury from hot liquid metal splatters.
  4. Another proof of the commitment to operator convenience is the use of a replaceable crucible for easy maintenance.
  5. In addition, a powerful electromagnetic stirring system ensures the uniformity of the liquefied metal. This is especially handy for alloys.
  6. The gold smelting furnace is also equipped with an all-round alarm system. This alerts the operator when potentially harmful operating conditions are approached.
  7. The induction gold smelting kit has the ability to operate at full capacity for 24 hours. This greatly reduces downtime in addition to scheduled maintenance.
  8. The use of induction technology has advantages. Due to the absence of electrodes and arcing, impurity deposits may form.
  9. Finally, no combustion occurs, thus preventing the production of unsafe gases such as carbon oxides and nitrogen oxides. Induction melting equipment has advantages over other forms of furnaces. Resistance furnaces and gas furnaces often release gases that are not safe for the environment.
Induction gold melting machine is one of the indispensable equipment in the precious metal refineries and jewelry manufacturers. Whether you are a goldsmith, a jeweler or just an ordinary person, choosing the right machine will greatly increase your productivity.

It can satisfy 1-12kg metal smelting, suitable for small and medium-sized factories, tell us the capacity of your factory and your finished products, and we will recommend you the most suitable model.

As the premier manufacturer of metal melting furnace, choosing us will be your right decision.
