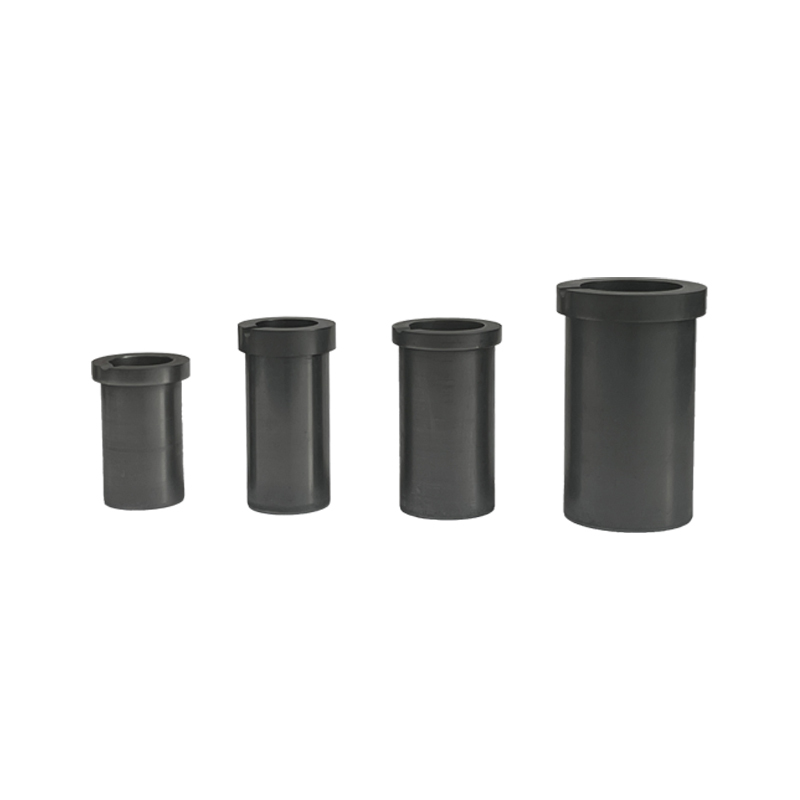

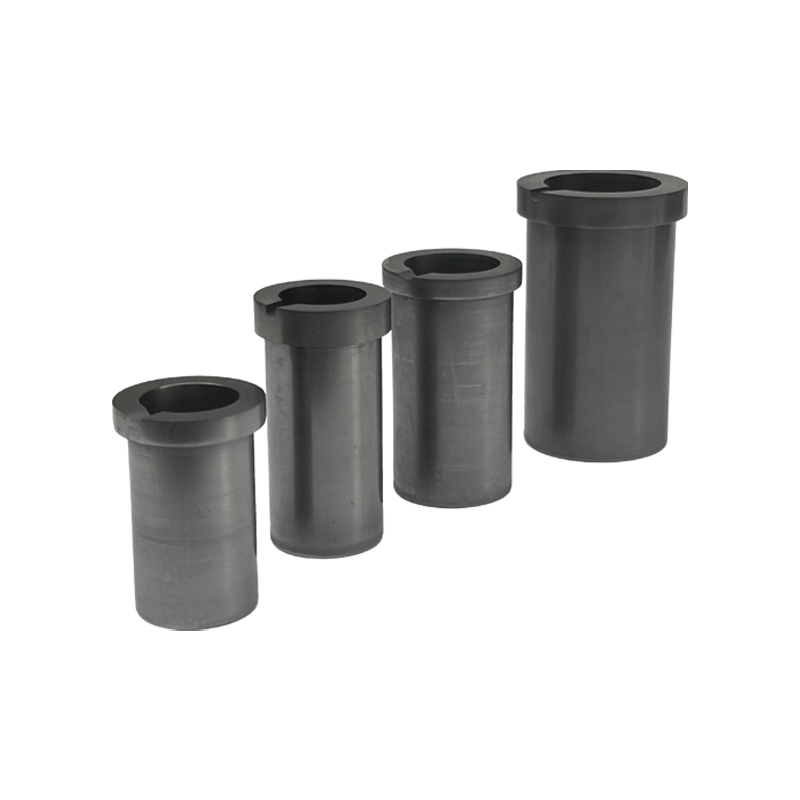

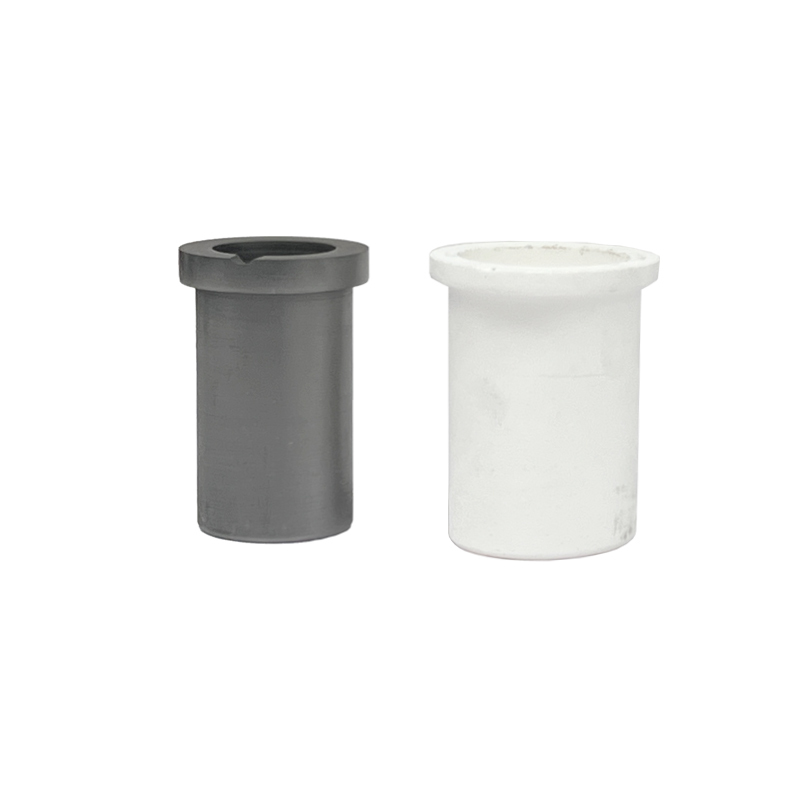

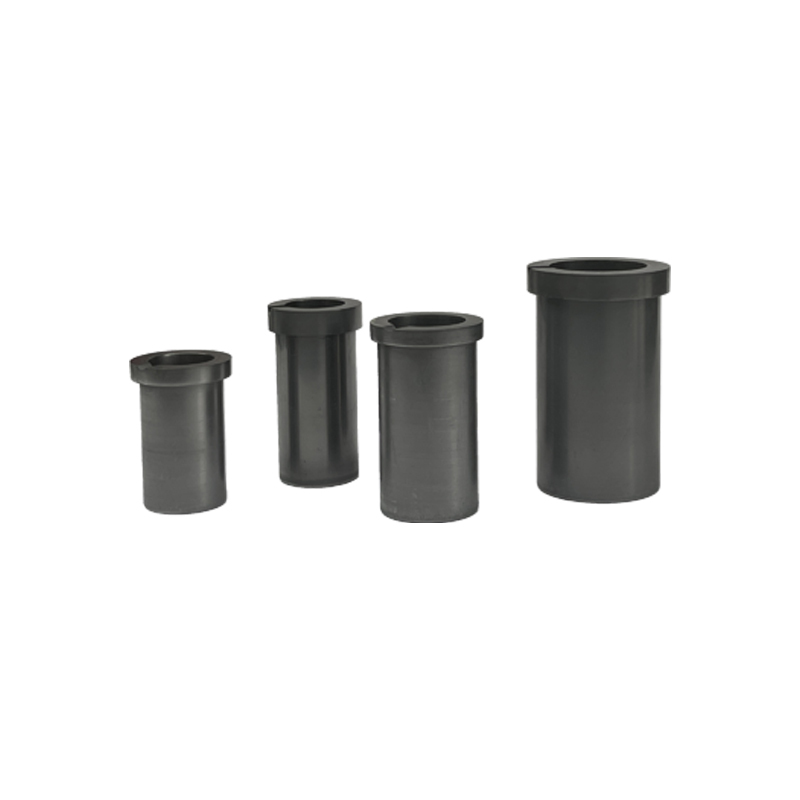

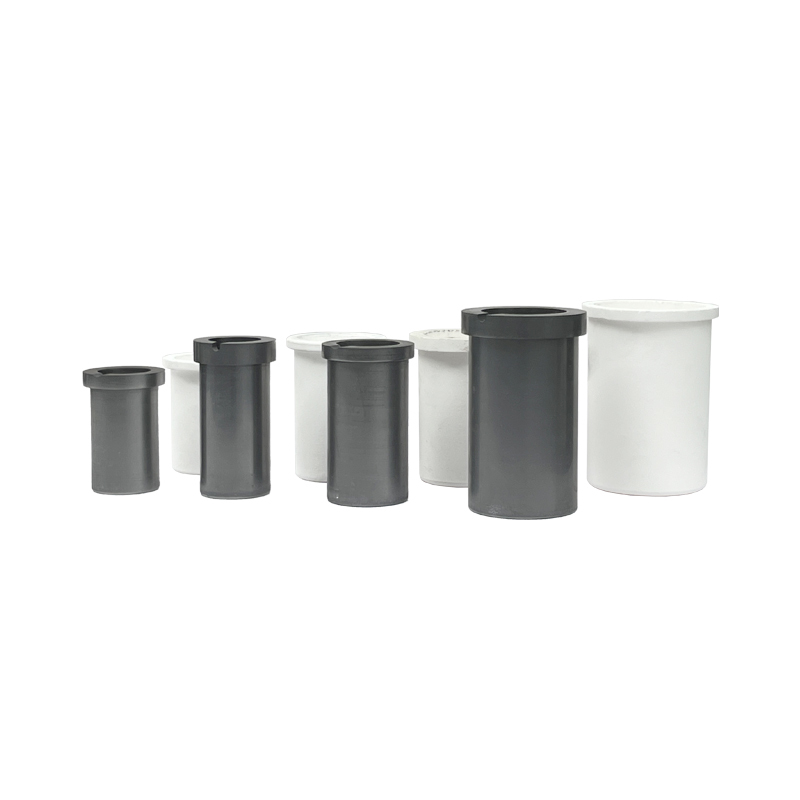

Graphite crucibles

No.TAKJ-GC
High purity, high density, high temperature resistance
  • Graphite crucibles
  • Graphite crucibles
  • Graphite crucibles
  • Graphite crucibles
  • Graphite crucibles
  • Parameters
  • Features & Benefits
Name Model Φ1 (cm) Φ2 (cm) Φ3 (cm)
h(cm)
1KG Graphite Crucible TAKJ-GC1 58 35 47 86
2KG Graphite Crucible TAKJ-GC2 58 36 50 110
2.5KG Graphite Crucible TAKJ-GC2.5 65 44 57 110
3KG Graphite Crucible TAKJ-GC3 68 47 60 123
4KG Graphite Crucible TAKJ-GC4 85 58 75 135
6KG Graphite Crucible TAKJ-GC6 100 67 86 135
8KG Graphite Crucible TAKJ-GC8 100 68 88 155
10KG Graphite Crucible TAKJ-GC10 113 80 103 176
Different sizes of crucible can be customized
  • The high density of the crucible  has the best thermal conductivity and its thermal conductivity makes it superior to other imported crucibles.
  • The crucible  has a special glaze layer and compact molding material that greatly improves the corrosion resistance and prolongs the lifespan of the crucible.
  • All the graphite components in a crucible  are made of natural graphite which makes the thermal conductivity very good.
  • Crucible users should bear in mind that graphite crucibles should not be placed on the cold metal table immediately after melting so as to prevent rupture due to rapid cooling.
  • Due to its superior performance, crucible can also be used for smelting various metals, including gold, silver, copper, aluminum, lead, zinc, brass and other non-ferrous metals.
  • The graphite crucible for melting gold can adapt to inert atmosphere furnaces, therefore making it suitable for high quality melting.
