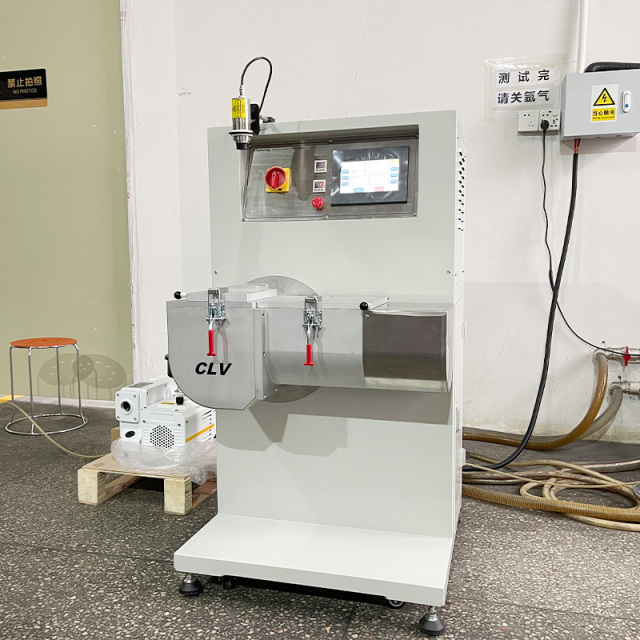

TAEANTECH 500g-10kg Rotary Vacuum Casting Machine For Platinum

No.TAKJ-CLV

Dual-chamber rotary design: The design of the dual-chamber differential pressure system and pouring structure rotates the entire smelting chamber 90° to complete the pouring. The pouring is more complete and the jewelry products produced are more plump and beautiful.
Extra Large Platinum Capacity: Taeantech's large white rotary multifunctional vacuum jewelry casting machine has a castable platinum capacity of up to 5000g. It is far higher than the highest 1000g capacity of other merchants on the market. When you need to smelt and cast a large amount of precious metals, especially precious metals, you dont have to smelt and cast them separately several times, saving time and manpower.
Platinum and gold dual-use: Taeantech multifunctional vacuum casting machine can reach a maximum temperature of 2100°C. You can set 1600 to automatically cast gold, silver and other low-temperature metal jewelry products. You can also set 2100 to cast high temperature refractory metals such as platinum, palladium and rhodium.
PID+Mitsubishi PLC control: PID intelligent temperature control panel controls the temperature difference during the jewelry casting process to ±1°C. Mitsubishi PLC human-machine interface intelligent control enables one-click operation to complete the entire jewelry casting process, which is very convenient.
Vacuum protection: The pressurization pressure is 10-120Kpa, creating a vacuum-protected environment for jewelry casting. Precious metals will not cause oxidation loss due to contact with air, or the cast jewelry will not have bubbles, pores, or defects.
System stability: The electrical system has complete protection functions, is highly intelligent, has a body self-test alarm system and multiple protection technologies.

Power max.
15KW
Electrical connection
380V Threee phase 50/60Hz
Temperature max.
2100℃
Capacity optianal
500g-10kg
Melting time
3-5 mins
Melting metal
Platinum,gold,silver,copper,alloy
Pressurizing pressure
10-120Kpa(Ajustable)
  • TAEANTECH 500g-10kg Rotary Vacuum Casting Machine For Platinum
  • TAEANTECH 500g-10kg Rotary Vacuum Casting Machine For Platinum
  • TAEANTECH 500g-10kg Rotary Vacuum Casting Machine For Platinum
  • TAEANTECH 500g-10kg Rotary Vacuum Casting Machine For Platinum
  • TAEANTECH 500g-10kg Rotary Vacuum Casting Machine For Platinum
  • TAEANTECH 500g-10kg Rotary Vacuum Casting Machine For Platinum
  • TAEANTECH 500g-10kg Rotary Vacuum Casting Machine For Platinum
  • Parameters

  • Features & Benefits

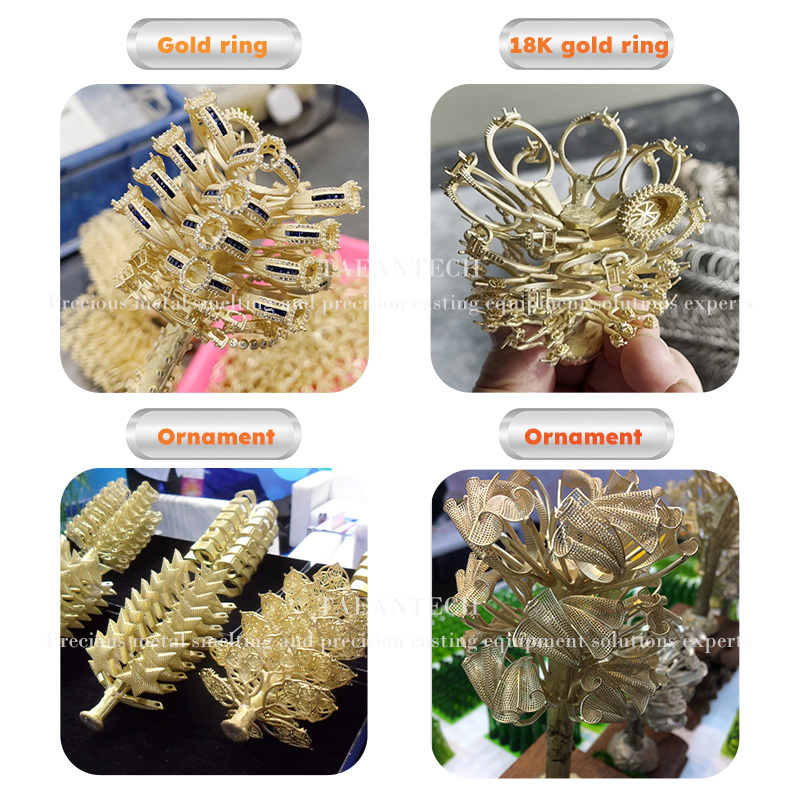

  • Application

  • Crucible & Mold

Model No.

TAKJ- CLV10

Voltage

380V three phase  50/60Hz

Power

15KW

Capacity

500g-5kg

Melting speed

3-5min.

Max. Temperture

2100°C

Temp Accuracy

±1°C

Casting pressure

0-3Bar (Adjust.)

Max. flask size

130*200mm

Application

Gold, Silver, Copper, Alloys,Platinum

Inert gas

Agron / Nitrogen

Operation method

POKA YOKE foolproof system

Control system

Automatic casting

Dimensions

680*680*1250mm

Weight

approx. 260kg

About Rotary Vacuum Casting machine

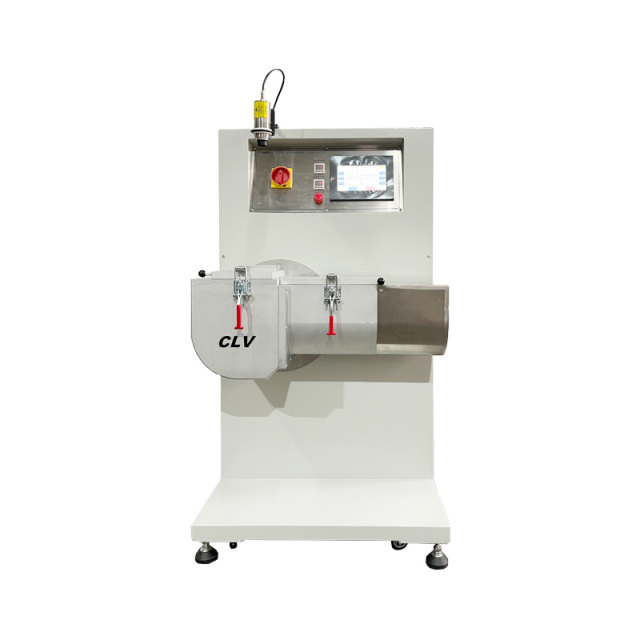

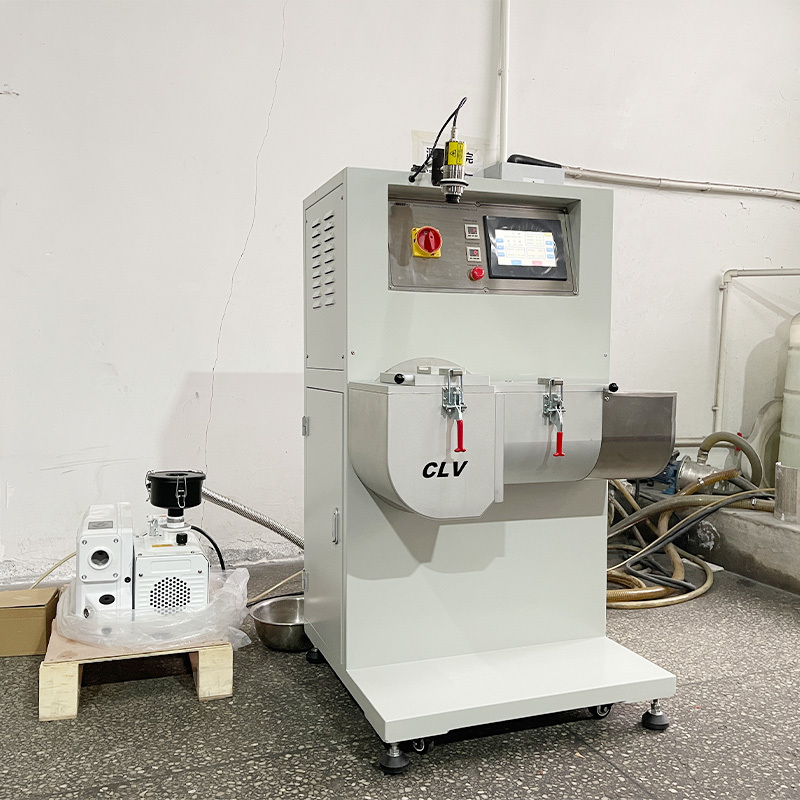

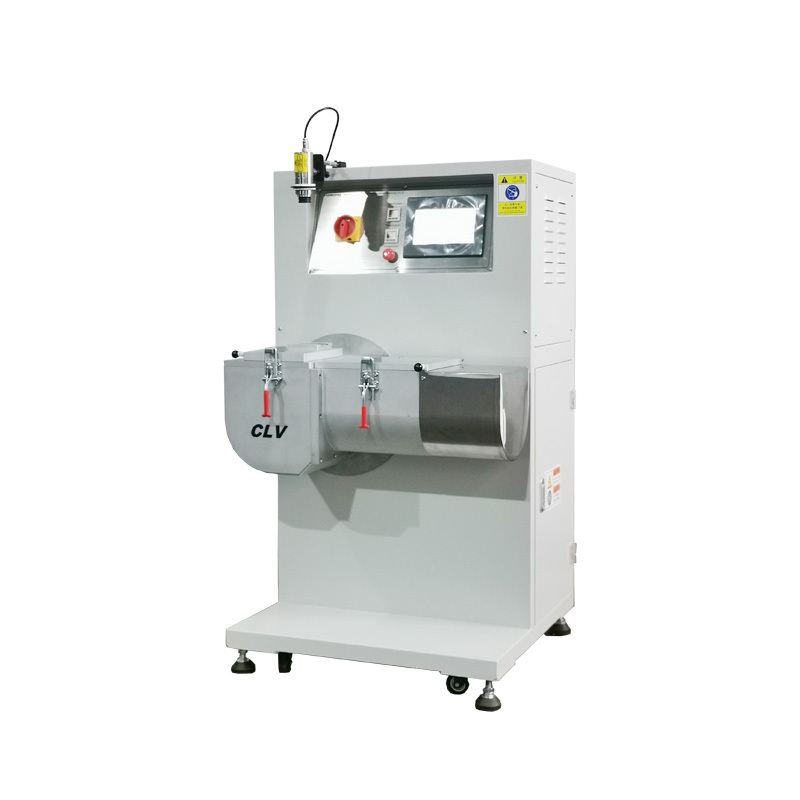

Taeantech 5Kg large rotary vacuum white jewelry casting machine (CLV) is a casting machine designed by Taeantech for mass casting of high-temperature metal jewelry products such as platinum and palladium. With a high temperature of 2100℃, a rotatable smelting chamber for 90º casting, and a large capacity of 5 kg, it can cast large quantities of high-quality platinum, palladium and other high-temperature metals. Suitable for jewelry companies and factories that need to cast large quantities of high-temperature metals such as platinum.


Part 1.Smelting Chamber
Part 2.Casting Chamber
Part 3. Mitsubishi PLC Control Panel



Part 1.Smelting Chamber

The melting chamber in Taeantech large white rotary jewelry casting machine is a key component of the machine. It is responsible for melting the raw metal into a liquid state for the subsequent casting process.

IGBT induction heating: Using the principle of electromagnetic induction, eddy currents are generated inside the metal raw materials to achieve heating.This method has fast heating speed and high efficiency. It can melt 1000g of gold, silver and platinum in 3-5 minutes.And the metal is not easily oxidized during the heating processIn contrast to the centrifugal type, the adhesion of molten metal to the casting chamber due to the rapid cooling of the metal is avoided.

PID ±1°C temperature control: The melting chamber can monitor and adjust the melting temperature in real time.This is essential to ensure the quality of the metal melt and avoid casting defects caused by overheating or cooling.Modern jewelry casting machines are designed with environmental protection requirements in mind, using low-pollution, low-energy-consuming heating methods and materials to reduce their impact on the environment.

The smelting chamber in a jewelry casting machine is a key component of the machine.Its structure, materials, heating methods, temperature control, etc. are directly related to the quality and efficiency of the casting process.The machine is suitable for mass production factories.

Part 2.Casting Chamber

The casting chamber of Taeantech large white rotary jewelry casting machine is a key part of the machine.It is responsible for completing the casting and molding process of molten metal in a vacuum environment.


Vacuum protection:
This is to reduce the contact of metal with oxygen in the air during the smelting and casting process, thereby preventing oxidation and ensuring the quality and appearance of the casting.      In a vacuum environment, the casting chamber is also filled with inert gas (such as argon) for protection, further reducing the risk of metal oxidation and helping to stabilize the melting and casting process.      The jewelry produced in this way has no loss and no bubbles in the finished product.

Rotating double chamber:
High temperature platinum is prone to rapid metal cooling during smelting and casting, resulting in metal liquid missing in the casting chamber, and the special fast rotating design effectively avoids side leakage of molten metal. At the same time, the design uses a double chamber form, separating the melting chamber from the casting chamber, which has an independent vacuum and pressure system, and the modular design can be more effective repair and cleaning.

Casting process: First, the metal raw materials are heated to a molten state in the smelting chamber, and the uniformity of the molten metal is ensured through stirring and other methods.The rapid rotation avoids side leakage of molten metal and saves manpower for mold pouring.When the molten metal reaches the required temperature and is ready to be cast, it is introduced in a specific manner into a mold in the casting chamber, where it is shaped.Under the influence of pressurized inert gas.The molten metal will evenly fill every corner of the mold, ensuring the density and integrity of the casting.Melting and casting dual-chamber rotation has few advantages in the world.When the business reaches a certain volume, it is necessary to mass-produce high-temperature metallic products.

Part 3 Mitsubishi PLC Control Panel

As a high-precision machine in modern jewelry manufacturing, the control panel of the vacuum jewelry casting machine is the core control center of the entire casting process.Taeantech rotary vacuum jewelry casting machine is equipped with Mitsubishi PLC with precise data control.

Parameter setting: Through the control panel, the operator can conveniently set various process parameters during the casting process.The precise setting of these parameters is crucial to ensuring casting quality.The control panel displays the current operating status of the casting machine in real time, helping operators grasp the machine's operating status in a timely manner.Gas flow management, the control panel is responsible for controlling the flow of inert gas to ensure that sufficient protective gas is provided for the smelting chamber and crystallizer during the casting process to prevent metal oxidation.

Safety warning: When a malfunction or abnormality occurs in the casting machine, the control panel will promptly send out an alarm signal and display a fault code or error message to help the operator quickly locate the cause of the problem.Human-computer interaction interface, the control panel adopts an intuitive and friendly human-computer interaction interface design, allowing the operator to easily grasp the machine operation method and status information.
