Vacuum protection: Taeantech small metal water atomization powder making machine can optionally be equipped with a vacuum pump to quickly and economically produce small batches of metal powder under vacuum protection and low loss conditions. 90% of metal powders have particle sizes below 50 mesh.In addition, by adjusting the water pressure, the mesh size can be controlled and the mesh size of the metal powder can be adjusted
Wide range of applications: Taeantech small metal atomization powder making machine is suitable for many metal processing industries, such as refining and purification plants, solder industry, new material processing industry, precious metal processing industry. The applicable metal range is also very wide, including platinum, palladium, gold, silver, copper, etc. We have provided this machine to many university laboratories, new material processing plants, jewelry manufacturers, etc., and have received very good feedback.
Fully automatic operation: Taeantech small metal atomization powder making machine is equipped with Mitsubishi PLC and intelligent PID ±1℃ temperature control panel, which can realize fully automatic operation. The machine has a simple structure, a clear screen interface, and can complete the entire operation process with one click. No professional training is required. We will provide online and offline training guidance, which can greatly save training costs.
Machine multiple protections: Taeantech small metal atomization powder making machine has multiple protections, equipped with short circuit protection, overcurrent protection, and overvoltage protection. This machine can achieve temperature protection and water and electricity separation. If the machine fails, it will automatically stop working.
|
Model No. |
TAKJ-VGMI1 |
TAKJ-VGMI30 |
|
Voltage |
380V 3 Phases, 50/60Hz |
|
|
Total Power Supply |
100KW |
120KW |
|
Max Temp |
2100°C |
|
|
Melting Time |
5-10 Min. |
20-25 Min. |
|
Powder sizes |
75-270 microns (Adjust.) |
|
|
Temp Accuracy |
±1°C |
|
|
Capacity |
10kg (Gold) |
30kg (Gold) |
|
Water pressure |
0.2-0.4Mpa |
|
|
Water temp. |
18-22°C |
|
|
Atomizing disk |
Adopt imported Germany original components and technology |
|
|
Vacuum Pump |
High level vacuum degree pump |
|
|
Application |
Gold, silver, copper, alloys |
|
|
Operation method |
One-key operation to complete the entire process, POKA YOKE foolproof system |
|
|
High pressure pump |
Touch penal control system |
|
|
Induction Generator Control System |
Mitsubishi PLC+Human-machine interface intelligent control system |
|
|
Shielding Gas |
Nitrogen/Argon |
|
|
Cooling type |
Water chiller (Sold separately) |
|
|
Dimensions |
3400*3200*3880mm |
|
|
Weight |
approx. 2800kg |
|

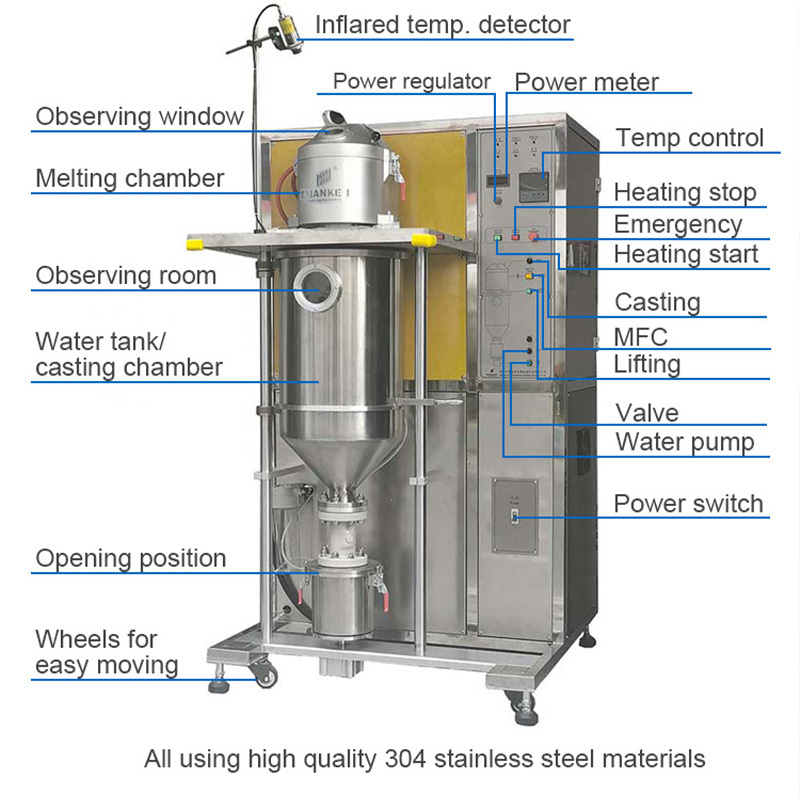

The casting system of Taeantech precious metal water atomization machine is a complex system that combines multiple technologies and equipment, and it is mainly responsible for converting liquid precious metals into solid powders after melting.
Water atomizer: After the metal is melted, the molten metal is sprayed into tiny droplets by high-pressure water atomization. These droplets are rapidly cooled and solidified into metal powder during flight. High-pressure water atomization technology has the advantages of high powder process efficiency and uniform powder particle size. The water atomizer adopts advanced powder process technology and modular combination design, so that the morphology and particle size of the powder can be accurately controlled within a certain range to meet the needs of different fields.
Inert gas protection: During the powder process, inert gas is continuously ejected from the nozzle, creating a protective layer that isolates the molten metal from the residual air in the vacuum casting room. At the same time, the inert gas also carries away oxygen and other impurity gases around the metal powder through flow and diffusion, ensuring the purity of the powder.
Cooling device: Taeantech cooling device is able to quickly and evenly contact the atomized metal droplets with cold water to achieve rapid cooling. Shorten the powder process cycle and improve production efficiency. At the same time, the water of the water cooling device will not produce harmful substances, will not cause pollution to the environment, and meets the environmental protection requirements of modern industrial production.
The casting system of Taeantech precious metal water atomization machine is widely used in the powder preparation field of precious metals such as gold, silver and copper, and can be used to prepare high-performance precious metal powder materials, which are widely used in electronics, chemical industry, medicine, aerospace and other fields.
Part 3 Intelligent Operating System
The intelligent operating system of Taeantech's precious metal water atomization machines mainly embodies the characteristics of automation, digitalization, intelligence and safety, which play an important role in the production process of metal powders.
Mitsubishi PLC: Taeantech precious metal water atomization machine adopts advanced brand Mitsubishi PLC (Programmable Logic Controller) control system, which has a high degree of reliability and stability, and can realize the automatic control of the production process. Through the Mitsubishi PLC control system, users can easily set production parameters such as temperature, pressure, time, etc., and ensure that the equipment is operated precisely according to the set program.
Human-machine intelligent interface: The human-machine interface of Taeantech precious metal water atomization machine adopts a simple UI (user interface) design, and the simple interface layout helps to reduce misoperation and improve production efficiency. The interface is highly intelligent. With an intuitive touchscreen or push buttons, the operator can easily adjust the machine's operating parameters and complete the entire metal powder process at the touch of a button.
Safety protection: stable system, perfect electrical system protection function, highly intelligent fuselage self-check alarm system and multiple protection technology. Such as overload protection, short circuit protection, leakage protection, etc., can cut off the power supply and send out an alarm signal in time when the equipment is abnormal. At the same time, the system is equipped with safety devices such as emergency stop buttons and protective covers to respond to emergencies and prevent operator injuries.
The intelligent operating system of Taeantech precious metal water atomization machine realizes precise control and efficient management of the powder process through PLC control, simple UI interface, and safety protection functions, and improves production efficiency and product quality.
