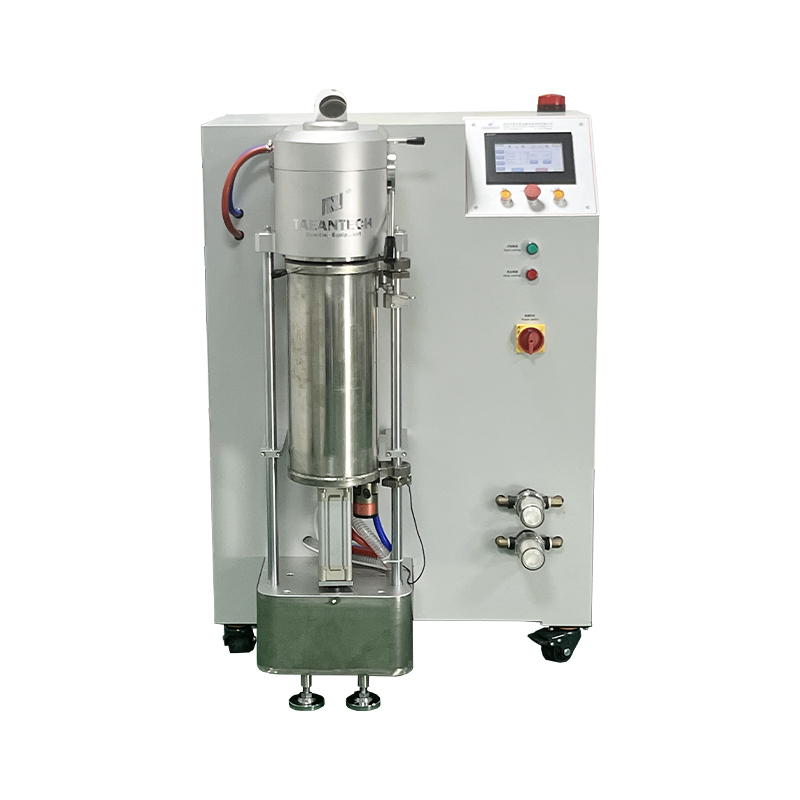

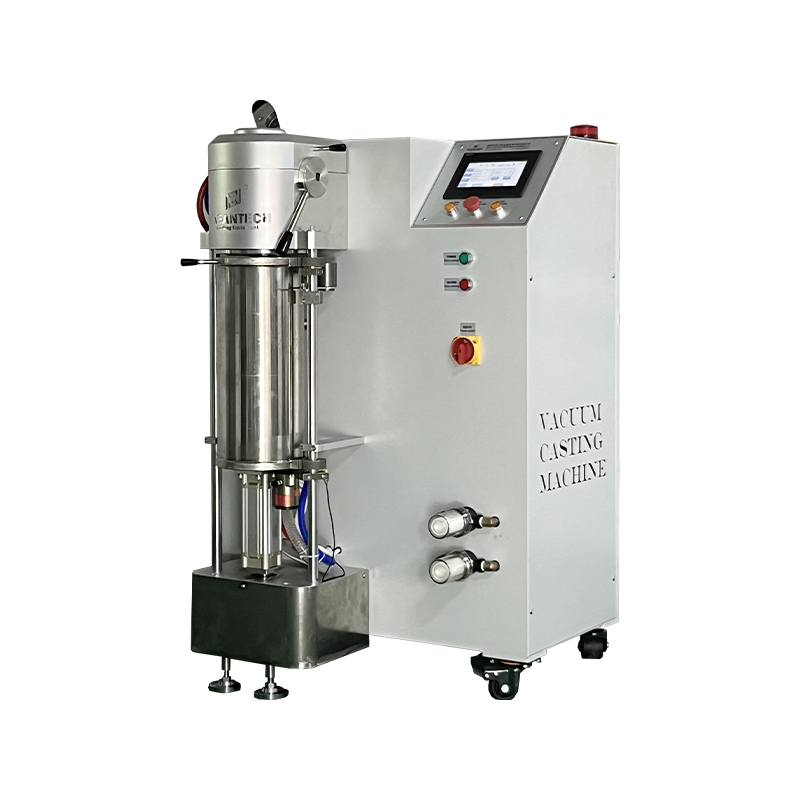

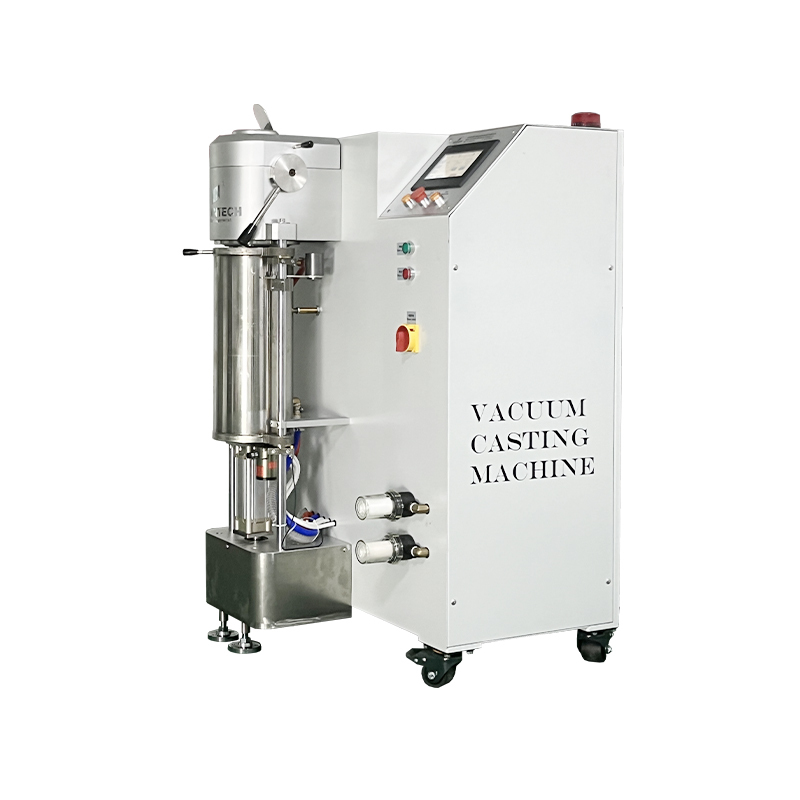

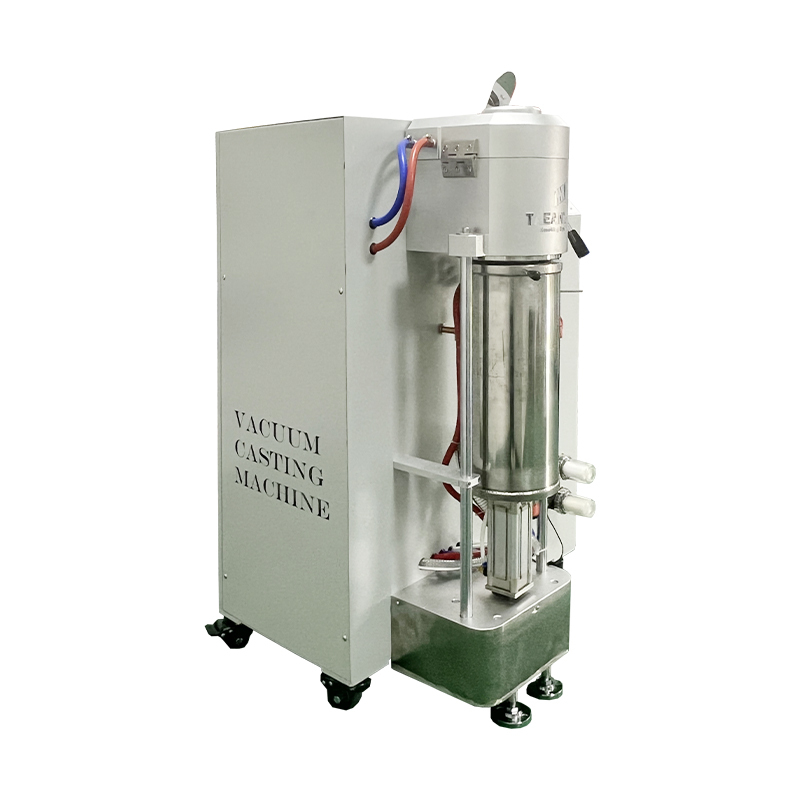

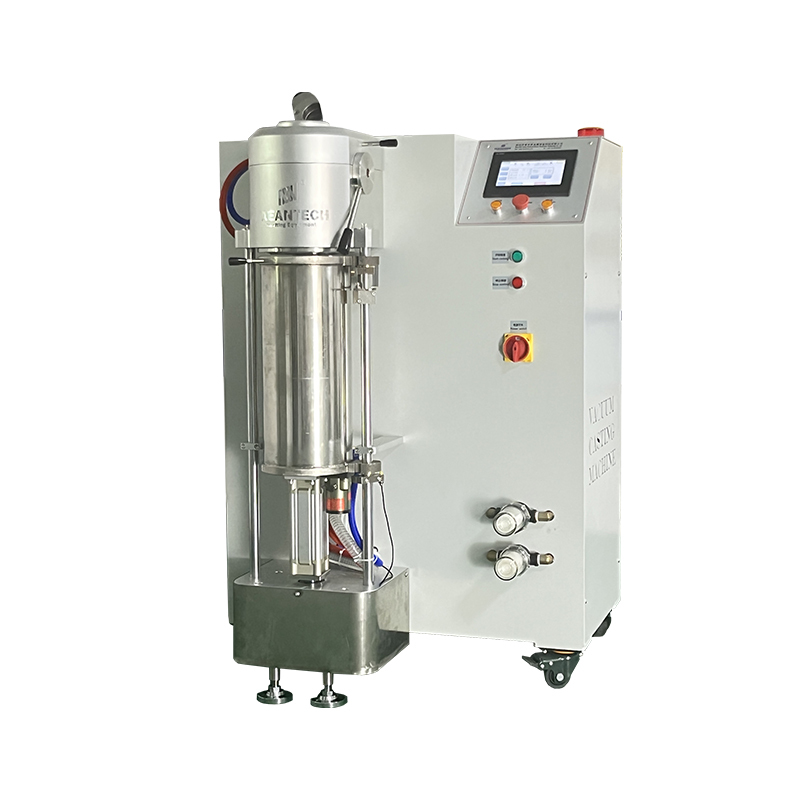

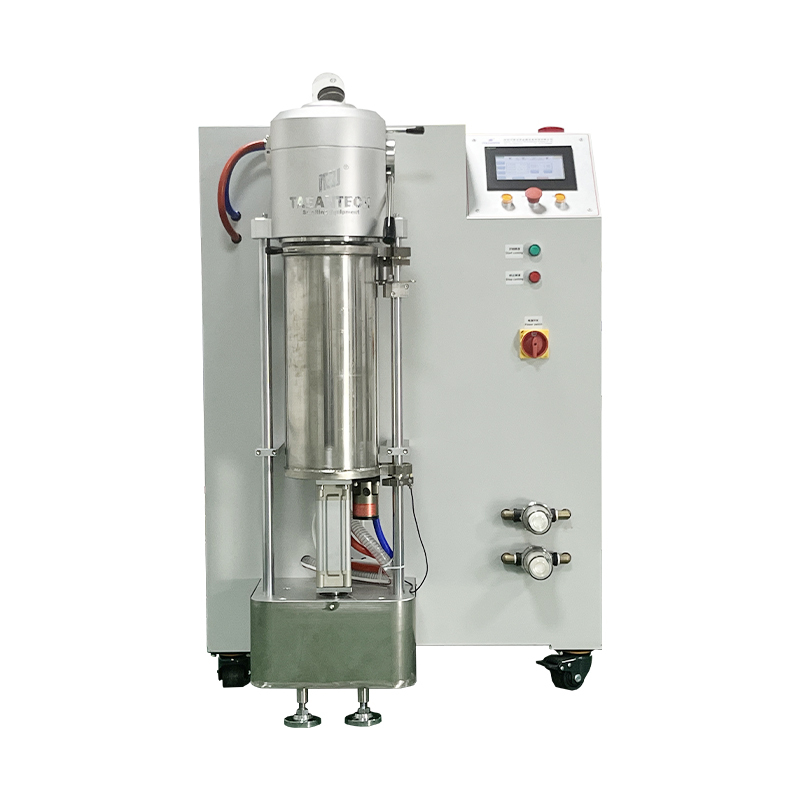

TAEANTECH 1-10kg TVC Gold Vacuum Pressure Casting Machine

No.TA-TVC

Double chamber: TVC melting chamber and casting chamber are completely independent. During casting, the machine can control the injection of molten metal into the mold by applying pressure during the pouring process.
Vacuum protection: Under the protection of vacuum and inert gas, the casting chamber can effectively avoid oxidation during the melting and solidification of precious metals, so as to maintain the stability of the molten metal composition and improve the quality of the casting. The casting has no bubbles, no imperfections, smooth and beautiful surface.
Vibration technology: By applying vibration, it can promote the flow of molten metal inside the casting, improve the solidification process of the casting, and make the structure of the metal material more compact, thereby reducing defects such as pores and inclusions and reducing the risk of "hot cracks".
Dual-purpose Platinum: TVC is one of the few dual-purpose jewelry casting machines on the market. The maximum temperature of the machine is 2100°C, and it can cast either platinum jewelry or gold and silver jewelry.
PID+ Mitsubishi PLC: Top intelligent temperature control PID 1°C, accurate temperature control. Mitsubishi PLC, known for high performance and high precision, can meet the high requirements of the control system in the vacuum pressure casting process.
Automatic cleaning: Automatic cleaning function can reduce the time and labor of manual cleaning and improve production efficiency. At the same time, the inside of the cleaned machine is cleaner, which is conducive to the stability of the casting process and the improvement of casting quality.
Dual filtration: By filtering out particles and impurities from the air, the dual filtration system protects the interior of the casting machine from damage. This helps extend the service life of the equipment and reduce maintenance costs.

Power max.
15KW
Electrical connection
380V three-phase
Temperature max.
2100℃
Capacity optianal
1-10kg
Melting time
3-5 mins
  • TAEANTECH 1-10kg TVC Gold Vacuum Pressure Casting Machine
  • TAEANTECH 1-10kg TVC Gold Vacuum Pressure Casting Machine
  • TAEANTECH 1-10kg TVC Gold Vacuum Pressure Casting Machine
  • TAEANTECH 1-10kg TVC Gold Vacuum Pressure Casting Machine
  • TAEANTECH 1-10kg TVC Gold Vacuum Pressure Casting Machine
  • TAEANTECH 1-10kg TVC Gold Vacuum Pressure Casting Machine
  • TAEANTECH 1-10kg TVC Gold Vacuum Pressure Casting Machine
  • TAEANTECH 1-10kg TVC Gold Vacuum Pressure Casting Machine
  • Parameters

  • Features & Benefits

Model No.

 TVC1

TVC10

Voltage

220V, 50/60Hz, Single Phase

380V, 50/60Hz 3 Phases

Power

5KW

8KW

Capacity (Gold)

1kg

10kg

Melting speed

3-5min.

3-5min.

Max. Temperture

2100°C

Temp Accuracy

±1°C

Casting pressure

0-3Bar(Adjust.)

Max. flask size

4"x10"Inch

Application

Pt, Pd, Rh,SS,Au, Ag, Cu,alloys

Inert gas

Agron / Nitrogen

Operation method

POKA YOKE foolproof system

Control system

Automatic casting

Dimensions

680*690*1450mm

Weight

approx. 260kg

About Taeantech's Touchscreen vacuum pressure casting machine

Taeantech factory leads the technological development of the jewelry casting machine industry, in order to meet the diverse and complex needs of modern customers, Teaentech factory carries out technological innovation, independent research and development, design and production of Taeantech2100℃ TVC jewelry vacuum pressure casting machine. It has an automatic cleaning function that most casting machines do not have, and a dual filtration system. Its flasks have a maximum size of 5*16 inch and can be switched between flanged flask and non-flange flask of different capacities. It can cast non-oxidized high-quality platinum jewelry, and can also cast non-oxidized high-quality gold and silver jewellery.

Part 1.Melting chamber
Part 2.Casting chamber
Part 3.Control systems


Part 1.Melting chamber


The melting chamber is a very important part in the vacuum pressure casting process of jewelry. The melting efficiency and melting effect of the smelting chamber directly determine the quality of the subsequent jewelry products. Therefore, Taeantech TVC applies a variety of industry-leading technologies in the melting chamber of the equipment to ensure high quality molten precious metals.

IGBT induction coil heating: When alternating current is passed through the induction coil in the vacuum pressure casting machine, an alternating magnetic field is generated around the induction coil, and the magnetic field creates eddy currents inside the metal raw material, thus heating is achieved. This heating method allows the metal to reach the required temperature more quickly, reducing energy consumption and improving production efficiency. Compared with the traditional heating method, the IGBT induction coil heating technology has lower energy consumption, combined with the high efficiency and high stability of IGBT, the waste gas and waste residue generated by the metal in the heating process is relatively less, which helps to reduce environmental pollution. The top of the melting chamber is equipped with an observation mirror, so that the operator can clearly watch the entire melting process from the best visual angle.

PID±1°C temperature control: PID temperature control technology continuously monitors and adjusts the temperature of the heated metal in the melting chamber through advanced internal sensors and processors to ensure that the temperature is always stable within the preset ideal range. This precise temperature control is essential for jewelry casting, as temperature is one of the key factors affecting the quality and performance of the casting. PID temperature control of Taeantech TVC vacuum pressure casting machine is accurate, and the temperature control range is ±1°C, while the temperature control range of most ordinary casting machines on the market is ±5°C -±15°C. Therefore, the jewelry produced by Taeabtech TVC vacuum pressure casting machine has high density, no segregation, no imperfections, and uniform color.

Electromagnetic stirring function: electromagnetic stirring can make the molten metal inside the formation of eddy currents, the molten metal in the uneven distribution of the elements mixed evenly, improve the overall quality of molten metal. At the same time, when the induction coil is working, an alternating magnetic field is generated around it. This magnetic field will also produce eddy currents inside the metal raw materials, which, combined with the eddy currents generated by electromagnetic agitation, makes the molten metal, especially the alloy material, melt evenly, completely and quickly with the best effect. The precise molten alloy produced in this way can better free up your costs.

The melting chamber of TaeantechTVC jewelry casting machine uses advanced IGBT induction coil heating, PID temperature control of 1, electromagnetic stirring function, so that the metal raw materials can be melted quickly, evenly and fully to obtain high quality molten metal, which lays a good foundation for the next step of jewelry casting.



Part 2.Casting chamber


The casting chamber is the core component of the TVC vacuum pressure casting machine, which provides a vacuum enclosed environment for the pouring and solidification of molten metal. In this vacuum enclosed environment, the molten metal is quickly cooled and solidified under the protection of high-pressure vacuum and inert gas, resulting in high-quality castings.

Vacuum high-pressure environment: Under the protection of vacuum and inert gas, the casting chamber can effectively avoid the oxidation of precious metals or alloys during melting and solidification, so as to maintain the stability of the molten metal composition and improve the quality of the casting. In the vacuum state, the gas and impurities in the molten metal can be effectively eliminated, thus reducing the defects such as porosity and shrinkage in the casting. The vacuum environment can also promote the flow and solidification of molten metal, make the structure of the casting more dense, and improve the mechanical properties and service life of the casting. At the same time, under the action of pressure, the molten metal can fill the mold cavity more fully, reduce the porosity and shrinkage defects, and improve the density and mechanical properties of the casting.

Pressurized funnel blanking: The metal raw materials are heated to a molten state in the smelting chamber, and the uniformity of the molten metal is ensured by electromagnetic stirring and other methods. At this time, the pressurized funnel is connected to the vacuum chamber, and the inside of the funnel is filled with molten metal. When the blanking is required, the pressure is applied to the funnel through the external pressure, and the molten metal enters the mold cavity through the outlet at the bottom of the funnel under the action of the pressure. Pressurized funnel blanking can ensure that the molten metal is injected into the mold in the fastest and best state, reduce the defects such as pores and inclusions in the casting, reduce the scrap rate, and thus reduce the production cost. The molten metal is quickly injected into the mold under pressure, which shorens the casting cycle and improves the production efficiency. Pressure hopper blanking has a wide range of applications, suitable for casting a variety of metal materials, such as platinum, gold, silver, copper and alloys.

Vibration technology: By applying vibration, it can promote the flow of molten metal inside the casting, improve the solidification process of the casting, and make the structure of the metal material more compact, thereby reducing defects such as pores and inclusions and reducing the risk of "hot cracks". Vibration can also refine the grain and improve the density and mechanical properties of castings. The tensile strength and elasticity of the casting are increased by 25%, and the subsequent processing performance is improved. Vibration technology can accelerate the solidification process of castings, shorten the casting cycle, and thus improve production efficiency. Vibration can also promote the separation between the casting and the mold, reducing the difficulty and time of demoulding.

Automatic lifting: Taeantech TVC vacuum pressure casting machine uses a two-cylinder system to achieve automatic lifting. The automatic lifting function allows flask to easily move up and down, making it easy for the operator to place and remove castings. This greatly simplifies the operation process in the casting process and improves the work efficiency. With the automatic lifting function, flask can quickly switch between different processes to ensure continuity and stability of the casting process. This helps reduce production disruptions and improve overall production efficiency. The automatic lifting function allows the vacuum pressure casting machine to adapt to the production needs of different sizes and shapes of castings. By adjusting the height and speed of the lift, you can flexibly meet various casting process challenges.

Platinum gold dual-purpose: Most vacuum pressure casting machines on the market can only reach a maximum temperature of 1500°C. This limits the application of the machine to low-melting metals, while high-melting metals, such as platinum, cannot be cast. For vacuum pressure casting machines, 2100 is very difficult, and it requires extremely high technical and equipment stability. Therefore, very few factories on the market have the capacity to produce 2100 jewelry vacuum pressure casting machines. 2100 TVC vacuum pressure casting machine for jewelry is a new trend equipment independently designed, developed and produced by Taeantech factory. This device is dual-purpose and can be applied to the casting of gold and silver jewelry as well as platinum jewelry.

Automatic cleaning function: The automatic cleaning function of the vacuum pressure casting machine of TVC jewelry automatically starts a series of cleaning procedures at the end of the casting process or when the set cleaning cycle is reached. These procedures include, but are not limited to, the cleaning of key components such as casting chambers, melting chambers, and pouring systems, as well as the cleaning of auxiliary components such as filtration systems and exhaust systems. The automatic cleaning function can remove stains and residues inside the casting machine, thereby avoiding the impact of these impurities on the quality of the casting and improving the purity and consistency of the casting. Regular cleaning can remove stains and oxides attached to the surface of the component, reducing wear and corrosion of the component, thereby extending the service life of the equipment.

Dual filtration system: The dual filtration system of the TVC vacuum pressure casting machine works in tandem with two separate filtration systems. The primary filtration system removes larger particles and impurities, and then the secondary filtration system removes the remaining tiny particles and harmful gases. The dual filtration system ensures that the gases used in the casting process (such as inert gases) are pure and pollution-free, thus improving the quality of the castings. At the same time, prevent impurities from entering the sensitive parts of the casting machine, and extend the service life of the equipment. Dual filtration system reduces harmful gas emissions and meets environmental requirements.

Dual-purpose flask: Most of the jewelry vacuum pressure casting machines on the market can only use flanged flask, and there are almost no casting machines that can be applied to two kinds of flasks with flange and without flange, because this technology is very difficult. Taeantech factory is the source factory for jewelry casting machines. Taeantech engineering team has worked hard to develop, design and produce Taeantech TVC vacuum pressure casting machine with dual-purpose flask function. Taeantech TVC can not only switch between flanged flask and non-flange flask, but also switch between flasks of different capacities at will. Taeantech TVC reduces the cost of conversion by eliminating the need for additional investment to adapt flask to different specifications. The non-flange flask is relatively simple in the installation and disassembly process, and does not require the use of special tools, which helps to improve production efficiency and reduce the difficulty of operation. The design of non-flange flask enables it to adapt to different shapes and sizes of the casting mold, increasing the flexibility and versatility of the equipment. Compared with traditional flanged flask, non-flange flask is easier to maintain, reducing downtime and maintenance costs caused by loose or damaged flanges.Part 3 Control systems



Part 3.Control systems

As a kind of high precision machinery in modern jewelry manufacturing industry, the control panel of vacuum pressure casting machine is the core control center of the whole casting process. The Taeantech control system combines HMI smart panels and Mitsubishi PLC, safety protection system for precise data control and fully automatic safety casting process.

Mitsubishi PLC: Known for its high performance and high precision, Mitsubishi PLC can meet the high requirements of the control system in the vacuum pressure casting process. In vacuum pressure casting, it is necessary to precisely control various parameters, such as temperature, pressure, casting time, etc. Mitsubishi PLC is able to ensure the stability and accuracy of these parameters, thereby improving the quality and yield of cast parts. Mitsubishi PLC can resist electromagnetic interference, vibration and temperature changes and other factors to ensure the smooth casting process.

HMI Smart Panel: The HMI Smart panel applies the "POKA YOKE foolproof system" function to prevent operator errors. The HMI intelligent panel uses a high-resolution display, which can clearly display the data and parameters during the casting process, as well as the equipment status and operation tips. Intelligent panel support touch operation, users can touch the screen to set parameters, start/stop the casting process, view data, etc., easy and fast operation, one key can be fully automatic to complete the entire casting process. HMI Smart panel has hundreds of programs, set once can be saved forever. Support multiple language display and operation, convenient for users in different countries and regions.

Safety protection system: Taeantech2100 TVC jewelry vacuum pressure casting machine is equipped with a perfect safety protection system, once there is an abnormal situation, the safety protection system will immediately send an alarm signal to remind the operator to take measures in time to avoid accidents. The safety protection system has a variety of protection functions, such as overload protection, short circuit protection, emergency shutdown, etc. These safety measures can ensure the safety of equipment and operators to avoid accidents.

Taeantech2100TVC vacuum pressure casting machine control system has multiple functions in the jewelry manufacturing process, such as precisely controlling casting parameters, improving casting efficiency and stability, optimizing casting process and product quality, and ensuring production safety. Together, these roles have promoted the development of the jewelry manufacturing industry and improved the quality and competitiveness of products.
