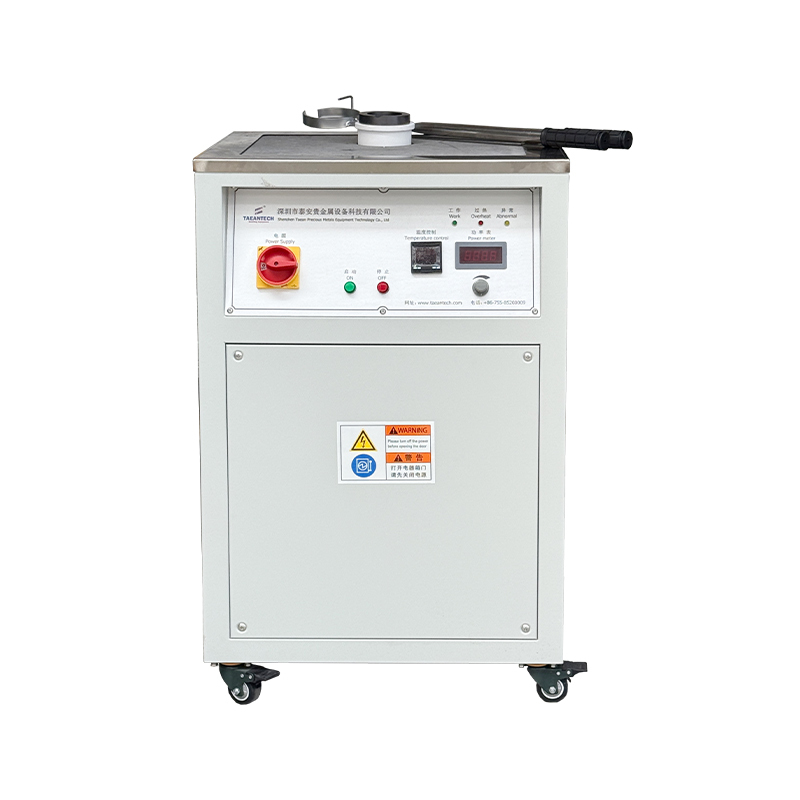

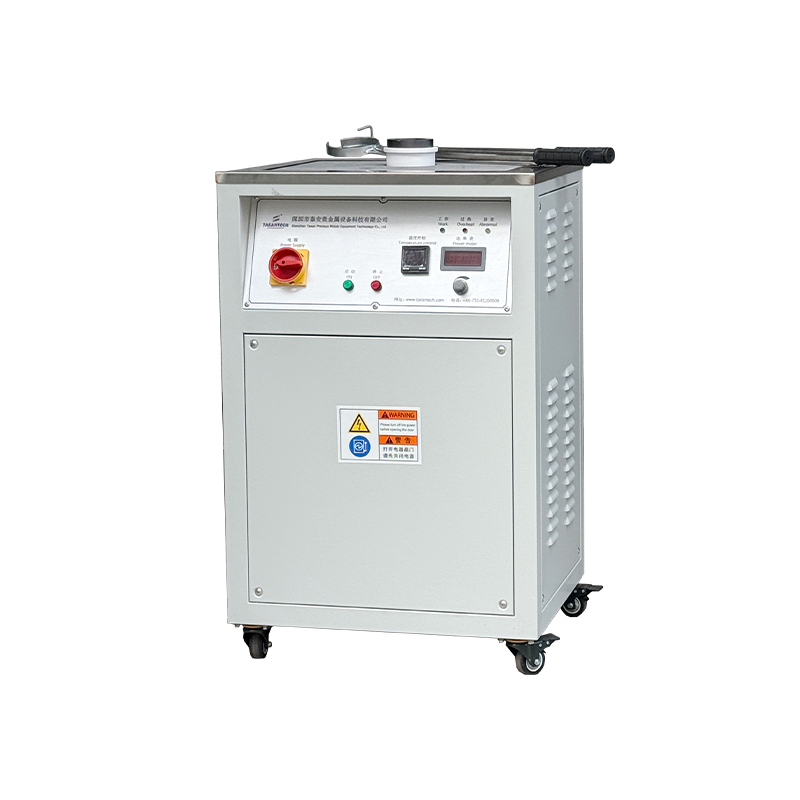

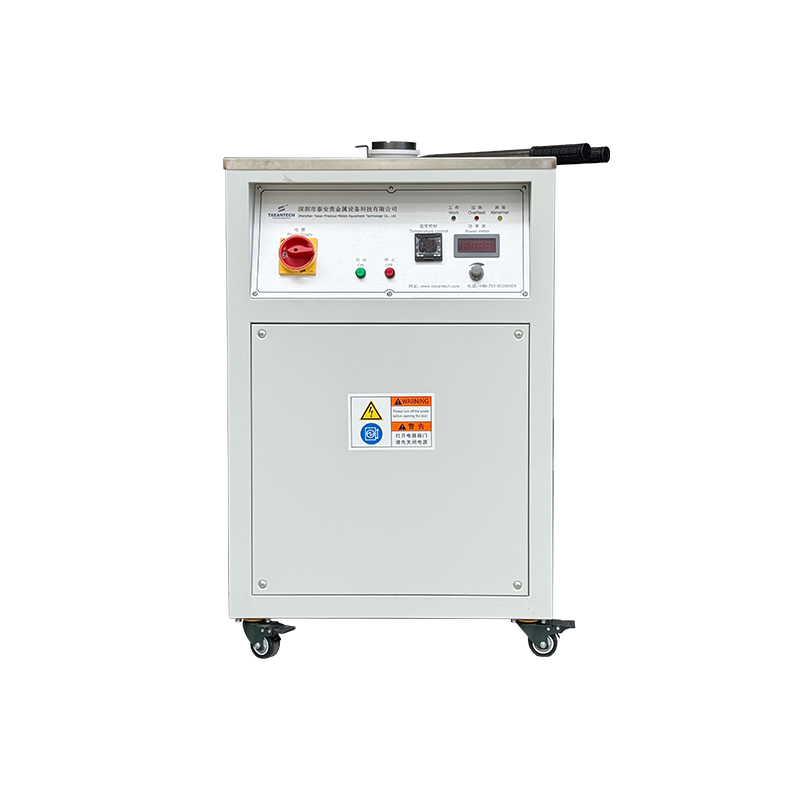

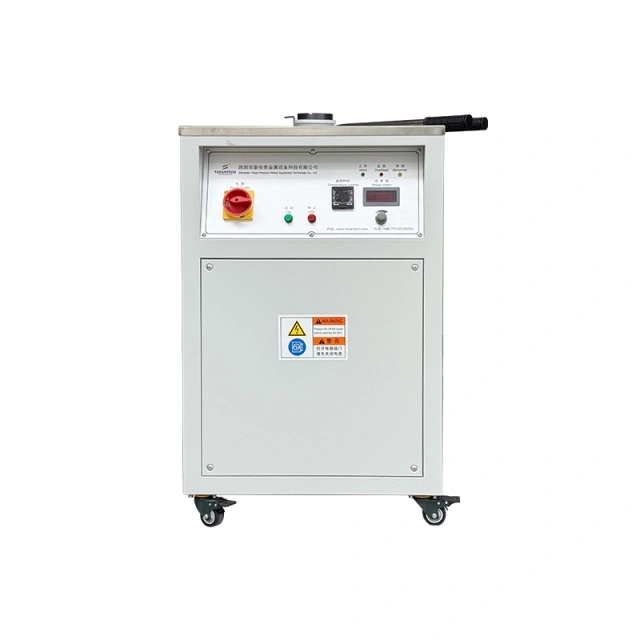

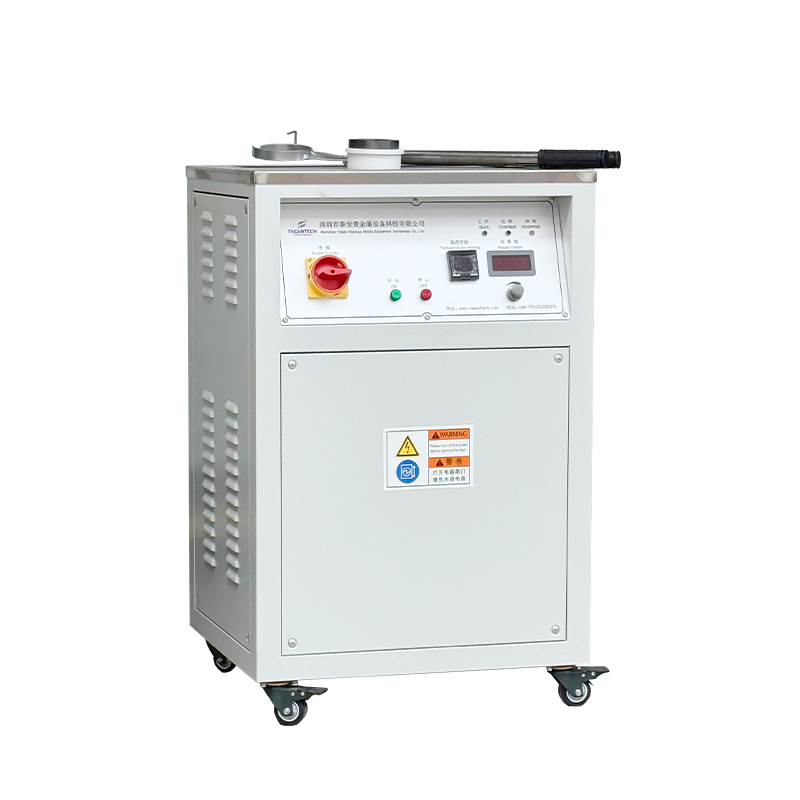

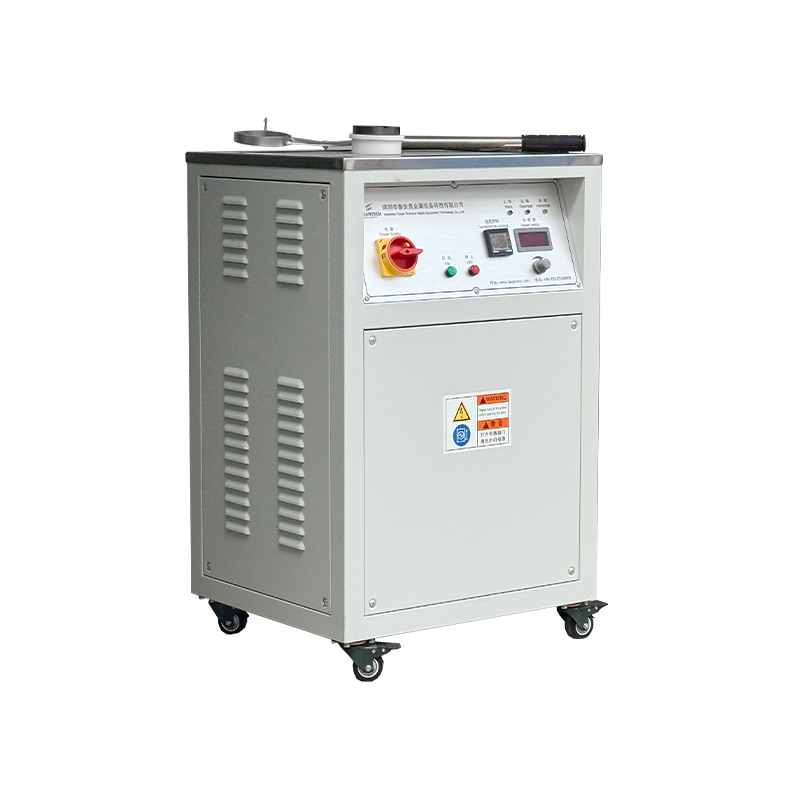

TAEANTECH 1KG-15KG Induction Gold sliver copper Manual Pouring Melting Furnace

No.TA-MG

High cost performance: Taeantech white vertical metal melting machine has many advanced intelligent systems such as IGBT induction coil heating, intelligent parameter adjustment system, safety protection system, PID temperature control system, etc. These are not available in ordinary melting machines of other merchants.
Easy to operate: Taeantech white vertical metal melting machine is equipped with rollers at the bottom, and the machine is very convenient to move. This machine can be equipped with the most advanced PID intelligent temperature control system. The temperature difference will not exceed ±1. You don't have to worry about problems caused by inaccurate temperature control during metal melting.
Safe and environmentally friendly: IGBT digital sensing technology provides intelligent, efficient and safe operation. Based on advanced circuit design, it consumes a small amount of energy, is environmentally friendly, and has no pollution from fossil fuel combustion. It has a safety protection system. When faults such as overcurrent, overvoltage, overheating, and short circuit occur, the fault indicator light will light up and an alarm will sound.
Fast melting: Taeantech white vertical metal melting machine uses IGBT induction coil advanced heating method, which can reach a maximum temperature of 1500 in a very short time of 2 minutes, and can melt 15 kg of gold in 5 minutes.

Power max.
15KW
Electrical connection
380V three phase 50/60Hz
Temperature Max.
1500℃
Capacity Optional
1-15kg Au
Melting time
2-5 minutes
Melting metal
gold, silver, copper, alloy
  • TAEANTECH 1KG-15KG Induction Gold sliver copper Manual Pouring Melting Furnace
  • TAEANTECH 1KG-15KG Induction Gold sliver copper Manual Pouring Melting Furnace
  • TAEANTECH 1KG-15KG Induction Gold sliver copper Manual Pouring Melting Furnace
  • TAEANTECH 1KG-15KG Induction Gold sliver copper Manual Pouring Melting Furnace
  • TAEANTECH 1KG-15KG Induction Gold sliver copper Manual Pouring Melting Furnace
  • TAEANTECH 1KG-15KG Induction Gold sliver copper Manual Pouring Melting Furnace
  • TAEANTECH 1KG-15KG Induction Gold sliver copper Manual Pouring Melting Furnace
  • Parameters

  • Features & Benefits

  • Application

Model

MG1

MG5

MG10

Voltage

380V; 50/60Hz 3 phases

Power

0-15KW

Capacity (Gold)

1kg

5kg

10kg

Max Temp

1500°C

Melting Time

1-2  min.

1-2  min.

5-8  min.

Temp Accuracy

±1°C

PID temp control

Optional

Application

Au, Ag, Cu,Other alloys

Cooling type

Water chiller(sold separately) or Running water (water pump sold separately)

Dimensions

560x480x880mm

Net Weight

 approx.60kg

Shipping weight

approx. 90kg



Advanced Induction Heating for Fast & Efficient Melting
Utilizing high-frequency induction heating technology, this induction melting furnace ensures fast, uniform, and energy-efficient melting, reducing processing time and improving operational efficiency.

Manual Pouring Design for Precision Casting
The ergonomic manual pouring system allows controlled metal pouring, making it ideal for precision jewelry casting and industrial applications requiring accuracy.

Versatile Multi-Metal Compatibility
This copper melting furnace is capable of processing gold, silver, copper, and other precious and non-ferrous metals, making it a versatile choice for various refining and recycling industries.

Energy-Saving & Eco-Friendly Performance
This metal melting furnace kit is designed with low-energy consumption technology, ensuring high-efficiency operation while reducing power usage, making it a cost-effective solution for businesses.

Product advantages

  • Fast & Uniform Induction Heating:Ensures quick and even melting for gold, silver, copper, and non-ferrous metals.
  • Manual Pouring System:Allows precise and controlled pouring, reducing material waste and improving casting quality.
  • Multi-Metal Processing:Perfect for metal refining, jewelry casting, and industrial applications.
  • Energy-Efficient & Eco-Friendly:Minimizes power consumption while maximizing melting performance.
  • Durable & Heavy-Duty Construction:Built with industrial-grade heat-resistant materials for long-term high-temperature use.



 Let’s work together to enhance your metal recycling and refining efficiency! Contact us today for the best solutions and pricing!

About Taeantech Gold Induction Melting Furnace

The Taeantech White Vertical Melting Machine (MG) is a high-efficiency vertical melting furnace. It has a maximum temperature of 1500°C. When you need to quickly and stably melt 1-15kg of gold, silver, copper, iron and other metals. This 15KW, fast heating melting machine is perfect for you. The bottom of the machine is equipped with rollers, which makes it easy to move the machine, which is very convenient.


Part 1: Heating Method

Part 2: Intelligent Control Systems

Part 1. Heating Method

Taeantech White Vertical Melting Machine (MG) applies the industry-leading IGBT induction coil heating technology in metal smelting. The power supply is converted into medium frequency alternating current by using the medium frequency power supply, and the induction coil is supplied. The induced current causes energy loss through the resistance of the material itself, resulting in heat generation. As heat accumulates, the temperature of the metal charge gradually increases and eventually reaches a melting state. The following are the advantages of IGBT induction coil heating technology.

High efficiencyThe IGBT induction coil has very low conduction losses and a small reverse recovery voltage during turn-off, resulting in low energy losses during operation of  Taeantech White Vertical Melting Machine (MG).  IGBT short reverse recovery time allows it to be adapted to high-speed switching, which improves the heating efficiency of the gold melting machine. This high efficiency reduces energy consumption and lowers production costs. With the automatic frequency modulation function, the machine can quickly heat up to 1500°C within 2 minutes. Within 5 minutes, 10 kilograms of gold, silver, copper and other metals can be quickly melted. This process, a traditional ordinary spray gun or an ordinary metal melting machine, requires a lot of energy, at least 20 minutes to complete. The efficient operation of IGBTs makes metal melting faster, saving time and energy.

High stability: The control accuracy of the IGBT induction coil is high, and the output power can be accurately controlled, making the gold melting process more stable and reliable. This allows for more precise temperature control and guarantees the quality and consistency of metal melting. IGBT has a high withstand voltage capacity and can withstand high voltage, ensuring the stable operation of the equipment in the melting process. IGBT to withstand high currents allows Taeantech White Vertical Melting Machine (MG) to drive high-power induction heaters to meet the needs of a wide range of metal melting. The equipment is suitable for the smelting of platinum, gold, K gold, silver, copper, aluminum and other metals, and has a wide range of application prospects. Due to the advantages of low switching losses and high switching frequency of IGBT, heat loss and mechanical wear of the equipment can be reduced, thereby extending the service life of the equipment.

Energy saving and environmental protection: Compared with the traditional series power supply, the energy saving rate of IGBT power supply in the melting process can reach more than 30%, and even 40% in some cases. This is mainly due to the high efficiency and low loss characteristics of IGBT, which can significantly reduce line losses and power factor losses during the inverter process. Compared to traditional coal heating methods and flamethrower heating methods, IGBT heating technology does not require fossil fuels, so it does not produce harmful gases and pollutants such as soot and sulfur dioxide. This helps to reduce pollution to the environment and protect the ecological environment.

Taeantech White Vertical Melting Machine (MG) uses IGBT induction coil heating instead of traditional flamethrower or coal heating. Ensure that customers can quickly melt a lot of metals with a small amount of electrical energy in an environmentally friendly environment without a large amount of harmful smoke and radiation, giving customers a perfect metal melting experience.


Part 2. Intelligent Control Systems

Taeantech White Vertical Melting Machine (MG) is equipped with a variety of intelligent control systems, including temperature control, safety protection, and automatic parameter adjustment. The Taeantech White Vertical Melting Machine (MG) is a highly intelligent, high-tech modern metal melting furnace.

PID±1°C Temperature Control: PID are used to precisely control the temperature inside the melting furnace to ensure that the metal melts within the optimal temperature range while avoiding overheating and affecting the quality of the metal product. PID temperature control system has the characteristics of accurate control, fast response, elimination of deviation accumulation, prediction and reduction of fluctuations, adjustable parameters, intelligence, automation, etc., as well as high reliability and stability. Together, these characteristics constitute the superior performance and wide application value of the system in the field of precious metal melting. PID temperature difference range of the MG configuration is ±1°C. Other common temperature control furnaces on the market have a temperature control range of ±5°C - ±20°C. When using  Taeantech White Vertical Melting Machine (MG), you don't have to worry about the loss of precious metals due to inaccurate temperatures.

Safety protection system: When Taeantech White Vertical Melting Machine (MG).When the safety protection system detects that the current is excessive, it will automatically cut off the power supply or reduce the power to prevent equipment damage or fire and other safety accidents. This protection mechanism is of great significance to prevent electrical faults such as short circuits and overloads. The device is equipped with a temperature sensor to monitor the temperature status of the device in real time. When the temperature of the device is too high, it will automatically cut off the power or reduce the power. Multiple indicators are installed on the device to display the operating status and fault information of the equipment. For example, the working indicator will flash when it is heated normally; In the event of a fault, the corresponding indicator light will illuminate and sound an alarm, so that the operator can detect the problem in time and take action.

Automatic parameter adjustment: The Taeantech White Vertical Melting Machine (MG) uses IGBTsInverter control technology enables precise adjustment of heating power. During the melting process, the system automatically adjusts the power output according to the melting material, furnace temperature and other factors to achieve the best melting effect. The system also has a load adaptive adjustment function, which can monitor load changes in real time and automatically adjust the power output to ensure stable melting results under different load conditions.

The highly intelligent design of the Taeantech White Vertical Melting Machine (MG) makes the melting machine very easy to operate and the operator can learn to use the machine in a very short time. The advanced heating method and perfect safety protection system ensure that you can melt the metal efficiently and safely.

Induction gold melting machine is one of the indispensable equipment in the precious metal refineries and jewelry manufacturers. Whether you are a goldsmith, a jeweler or just an ordinary person, choosing the right machine will greatly increase your productivity.

It can satisfy 1-12kg metal smelting, suitable for small and medium-sized factories, tell us the capacity of your factory and your finished products, and we will recommend you the most suitable model.
